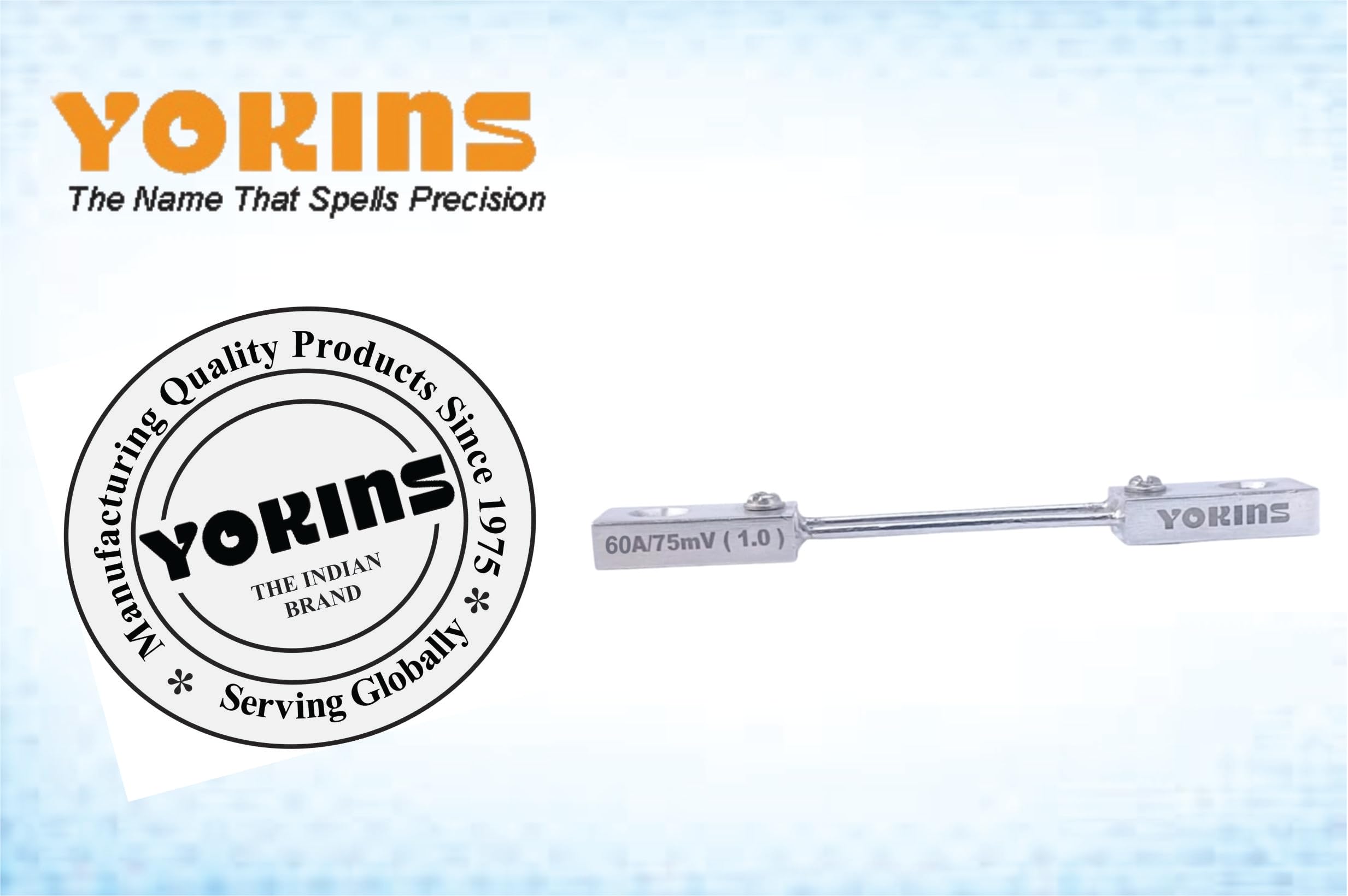

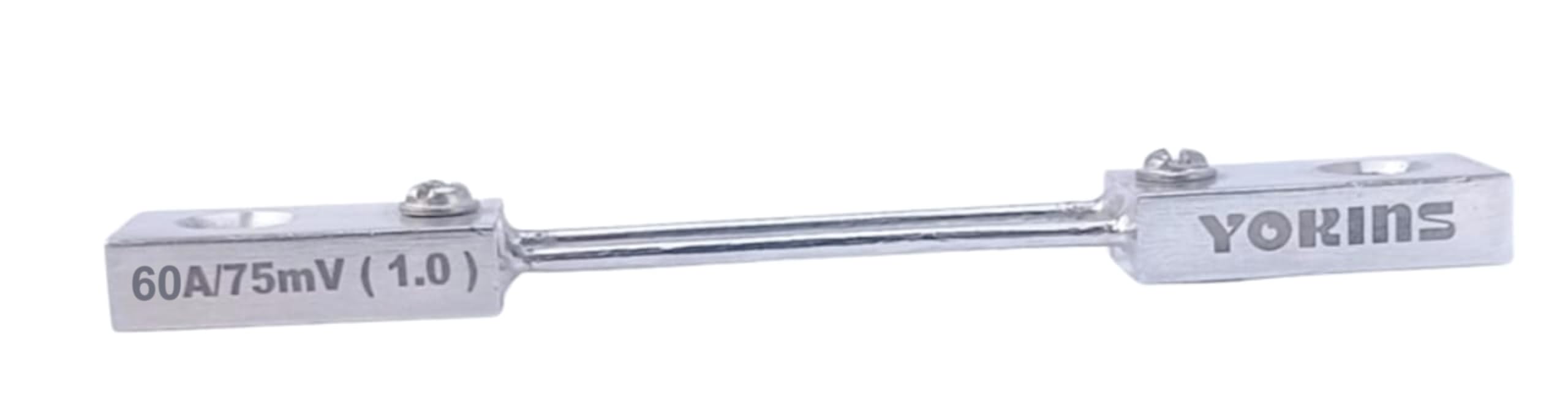

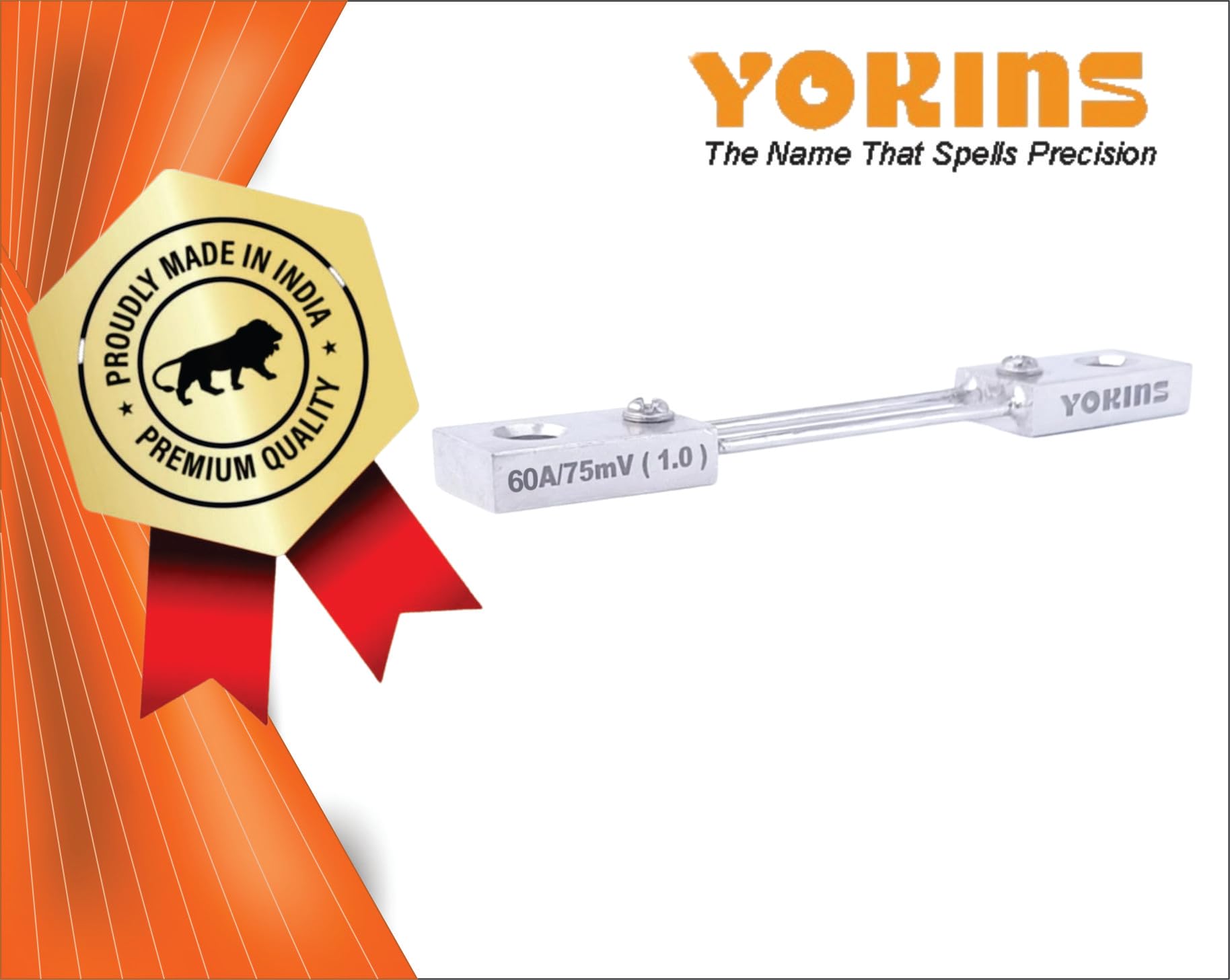

YOKINS, DC Shunt 60A/75mV as per IS1248 Current Meter Shunt Resistor Resistance for DC Ammeter Shunt
Visit the Yokins Store4.5 (2 Reviews)
$8.49$10.99-23%
Availability: 34 item(s)
1
Silkrute sources this product on your behalf from trusted local suppliers globally after you place your order and handles international shipping, customs, and customer support to your destination.
About this item

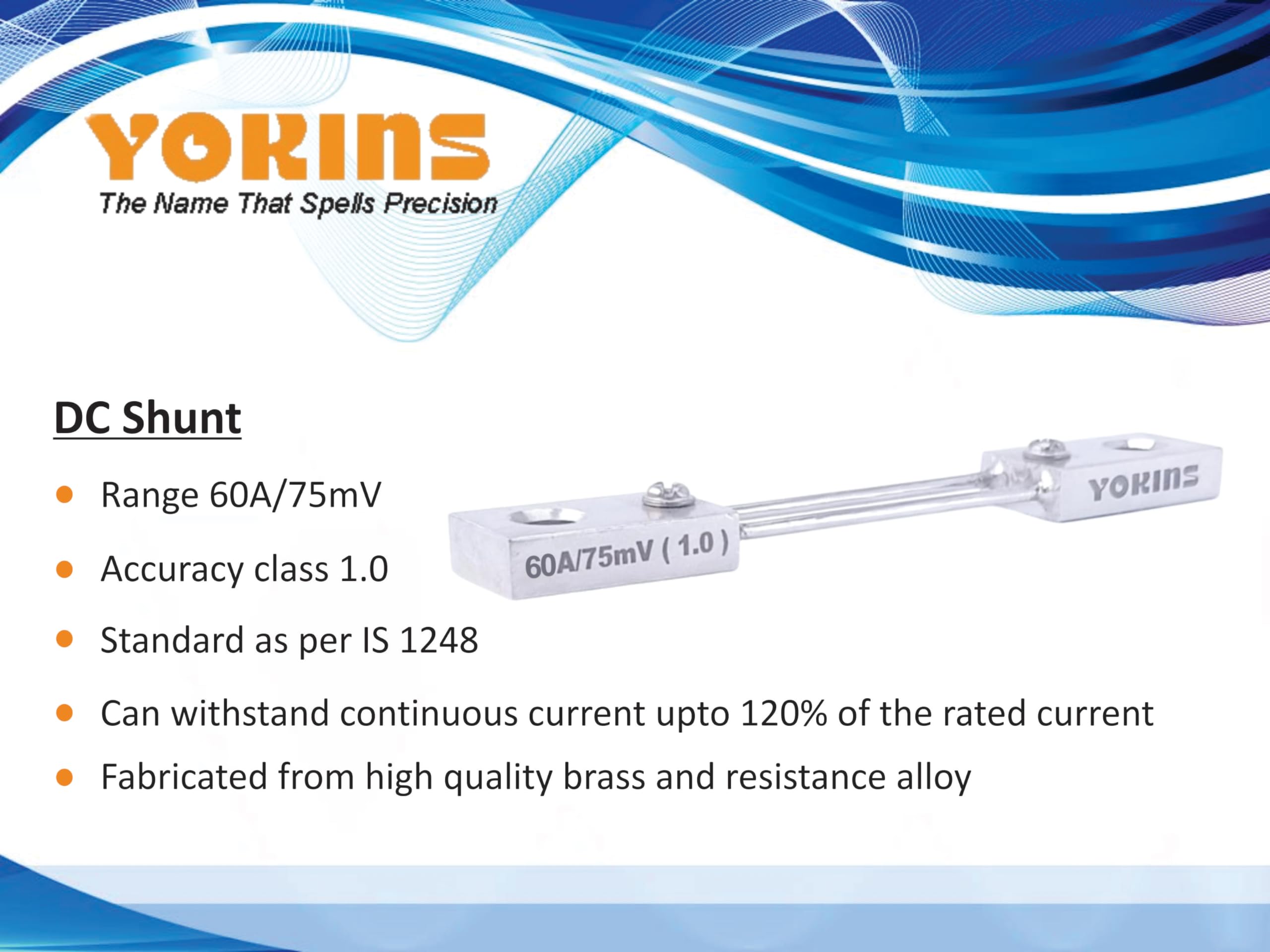

- DC shunt resistorRange60A/75mV
- Accuracy Class 1.0 Standard as per IS 1248
- Shunt resistor is used for measurement of DC Current with precision
- Can withstand continuous current upto 120% of the rated current
- Fabricated from high quality brass and resistance alloy, ensures the same performance for decades. Our shunts are known for stability and durability
Fast Delivery
Purchase Protection
Secure Payment
Easy Returns
DC Current Shunt Type: Asper IS 1248 Range: 60A/75mV Primary rating: 60A Secondary rating: 75mV Accuraccy Class: 1.0 Make: YOKINS Standard: IS 1248 The shunt resistor is a low resistance which is based on the principle that when a DC current flows through a resistor, a voltage is produced across it. As high current cannot be directly measured using ammeters, the shunts are used in series in the circuit with high current and a millivolt drop across the shunt is measured using ammeters connected in parallel to shunt So shunt is used with DC ammeter or any measuring device to measure high currents. Our shunts are manufactured from electrical grade brass in the side blacks and manganin resistance rods in between. Both these are brazed together with perfection to attain high quality industrial grade shunts, meant to be used on full loads without any issue. One year Warranty
