Yellow Tommy Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope + Digital Multimeter + DDS Function Generator | 2C23T |

About this item

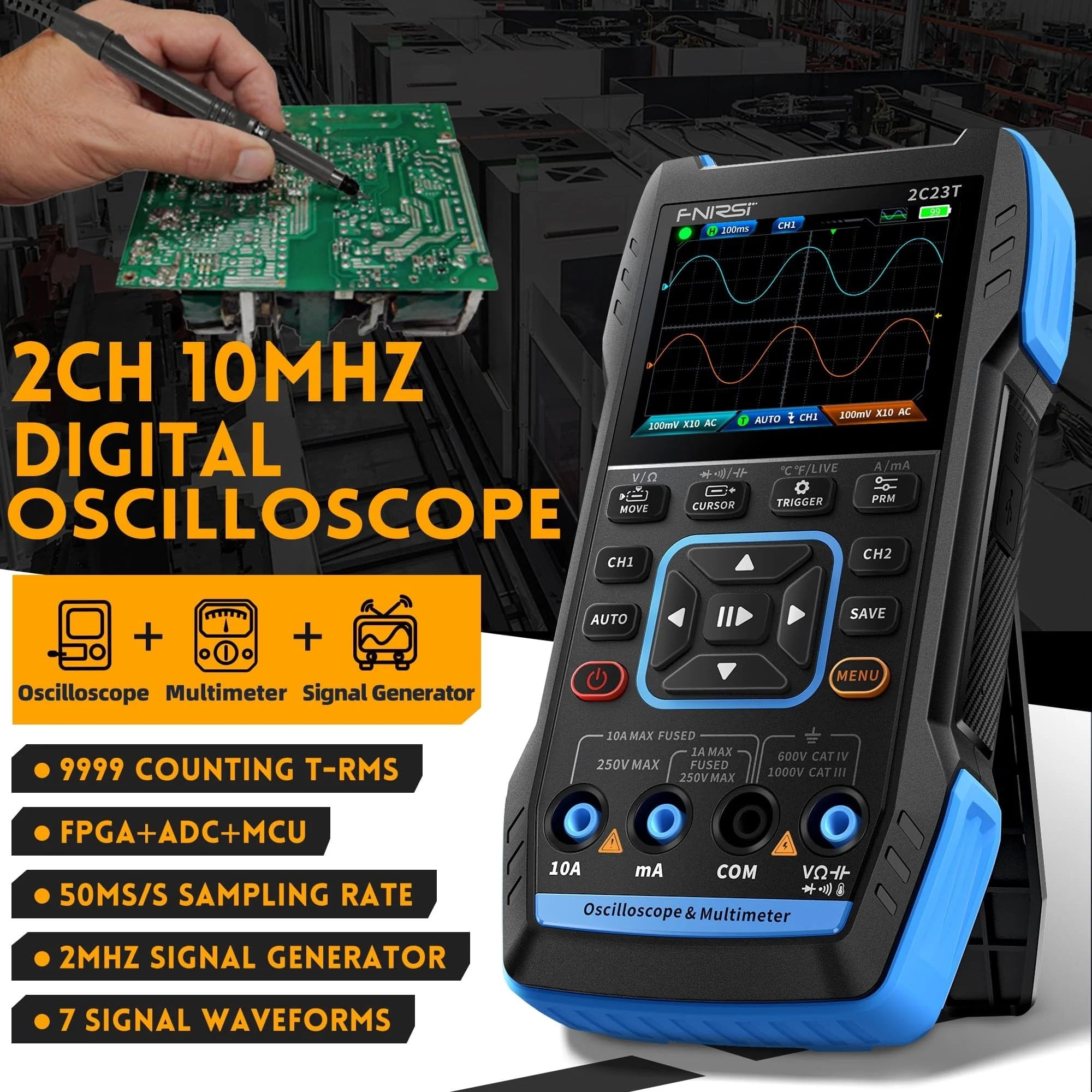

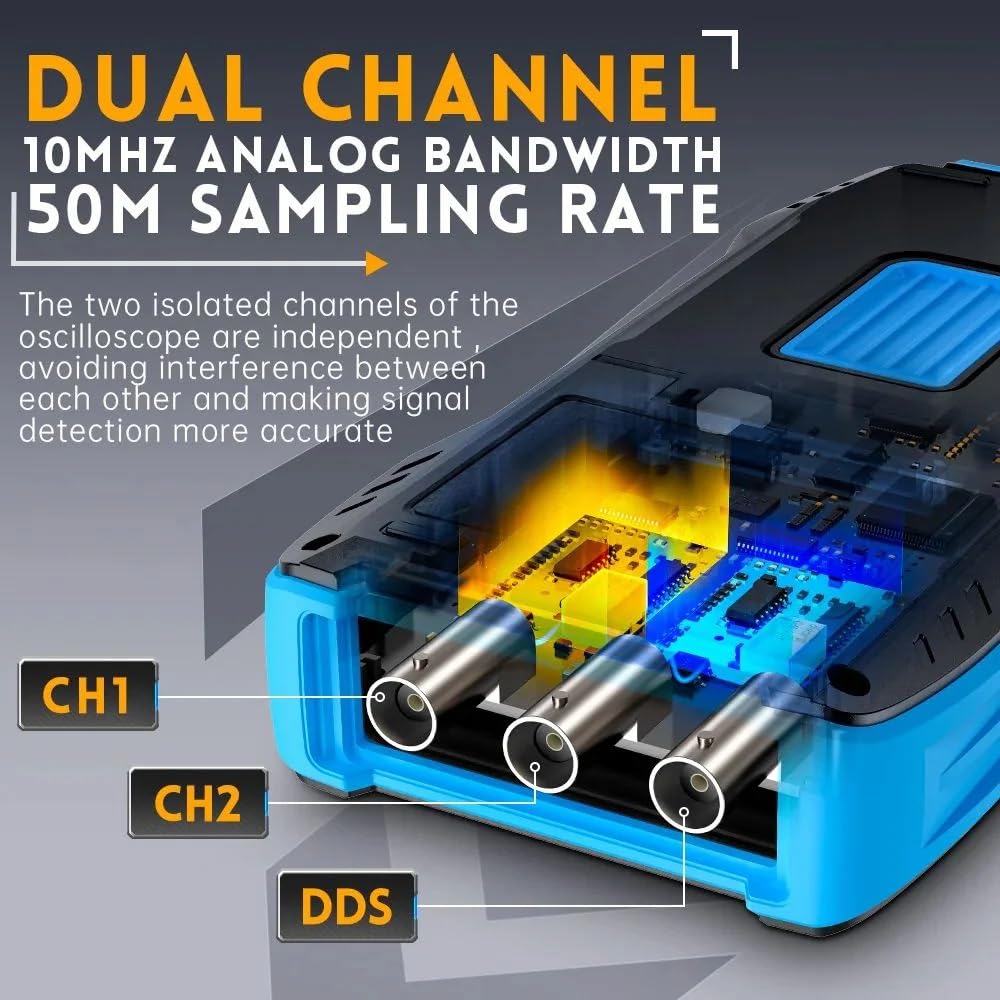

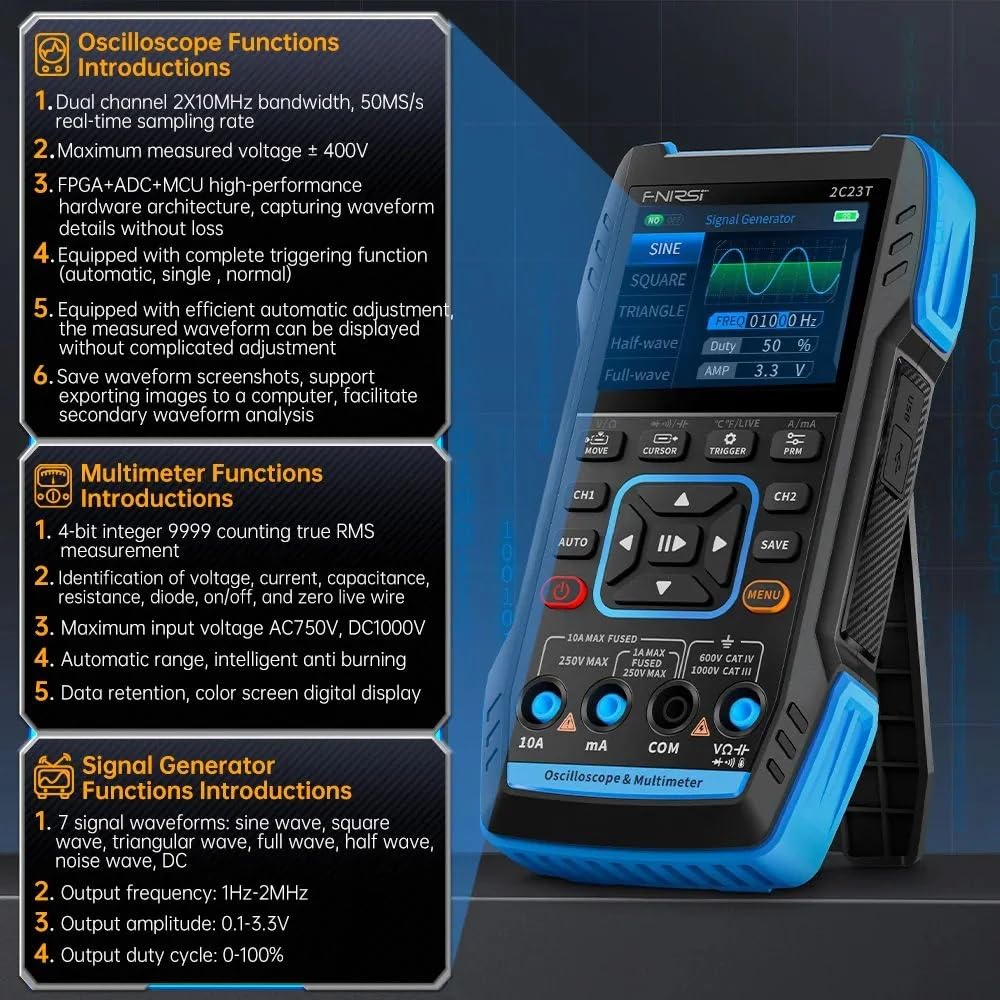

• Oscilloscope Mode: Dual-channel handheld oscilloscope with 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement, max voltage of 400 V, vertical sensitivity 200 mv/div-10 v/div, and waveform storage/export.
• Multimeter Mode: 4-digit 10,000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.
• Signal Generator: The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.
• Save Function: One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

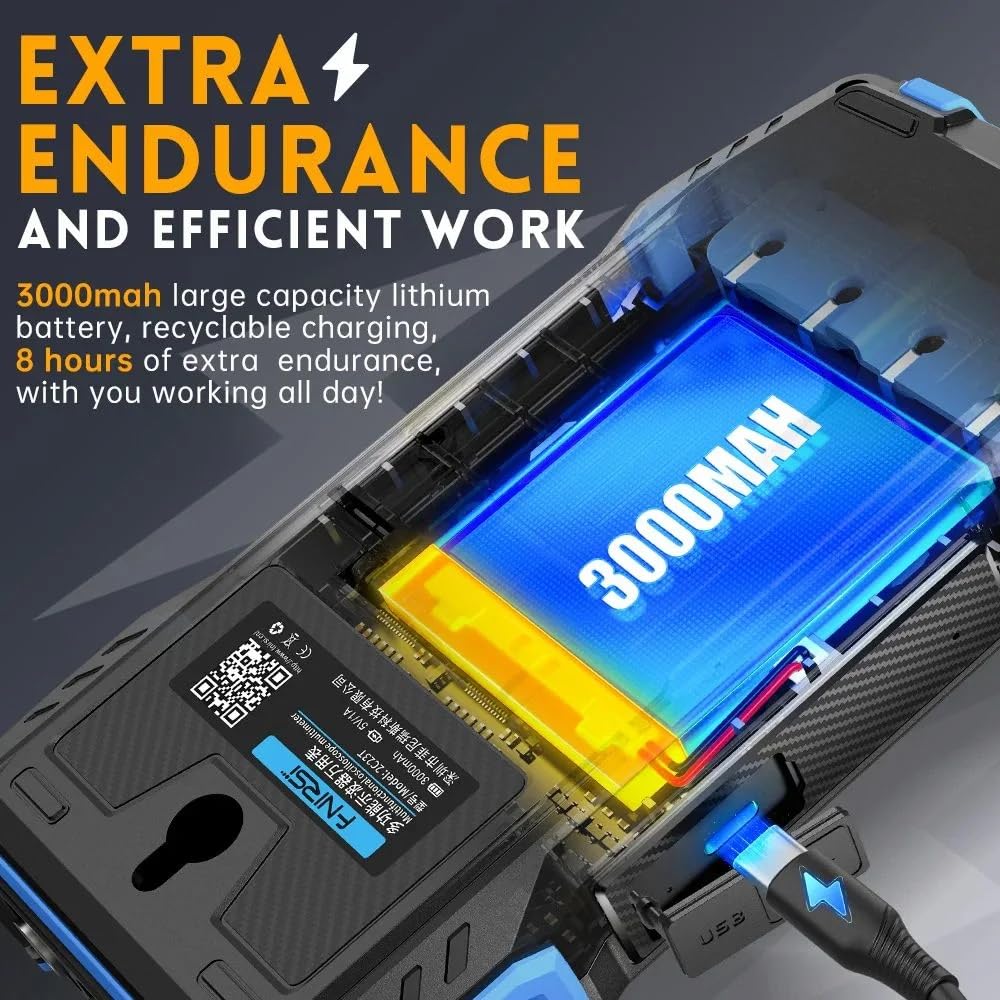

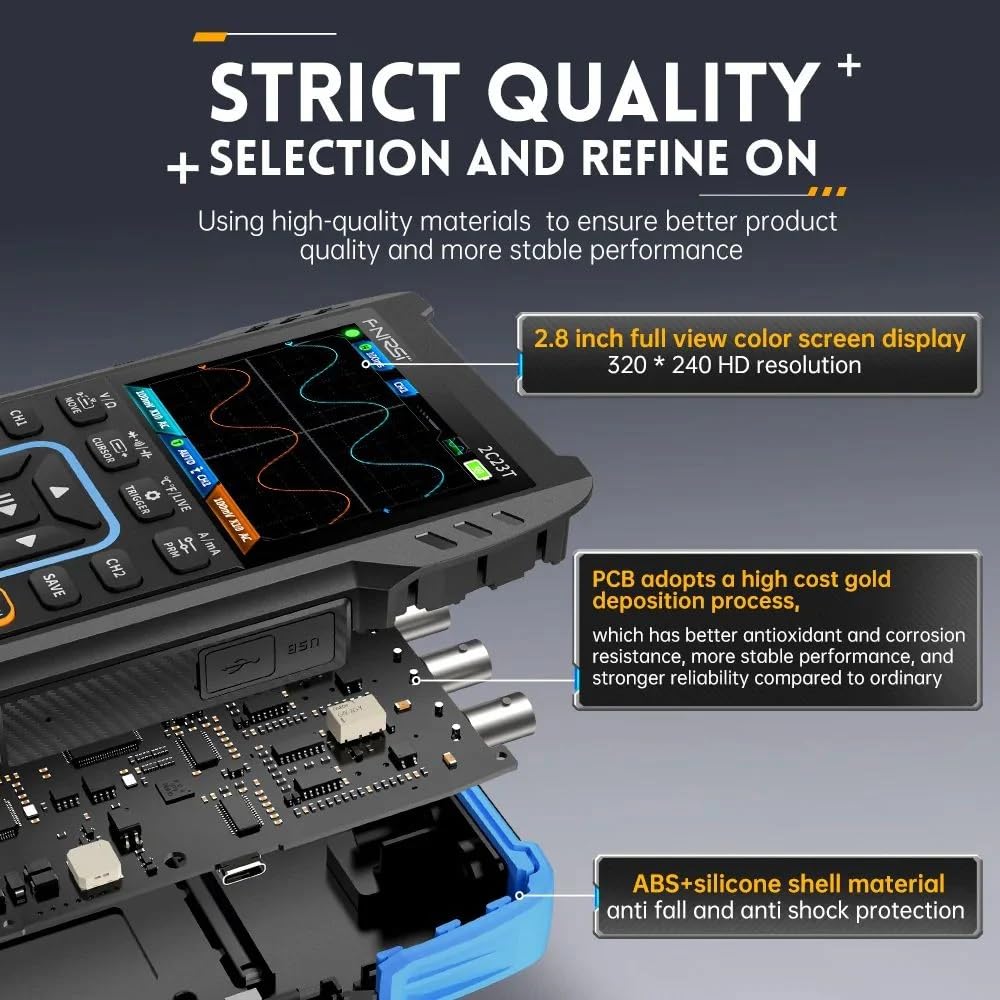

• Excellent Design: The Oscilloscope adopts FPGA + MCU + ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A charging
