HASTHIP® 20A 12V to 24V Solar Charge & Panel Controller,Intelligent Regulator with Dual USB Port 5V Light Timer Control

Fast Delivery

Purchase Protection

Secure Payment

Easy Returns

HASTHIP® 20A 12V to 24V Solar Charge & Panel Controller,Intelligent Regulator with Dual USB Port 5V Light Timer Control and LCD Display

Name: HASTHIP® 20A 12V to 24V Solar Charge & Panel Controller,Intelligent Regulator with Dual USB Port 5V Light Timer Control and LCD Display
Brand: HASTHIP
SKU: PR00069929
Price: 13.49 USD
Availability: InStock

Visit the HASTHIP Store

Color: Blue

3.6 (121 Reviews)

$13.49$16.49-18%

Availability: 35 item(s)

Quantity:

Silkrute sources this product on your behalf from trusted local suppliers globally after you place your order and handles international shipping, customs, and customer support to your destination.

About this item

Compatiable battery Type: The charge regulator is only suitable for lead-acid batteries, it is not suited for nickel hydride, lithium, Liions, or other batteries.

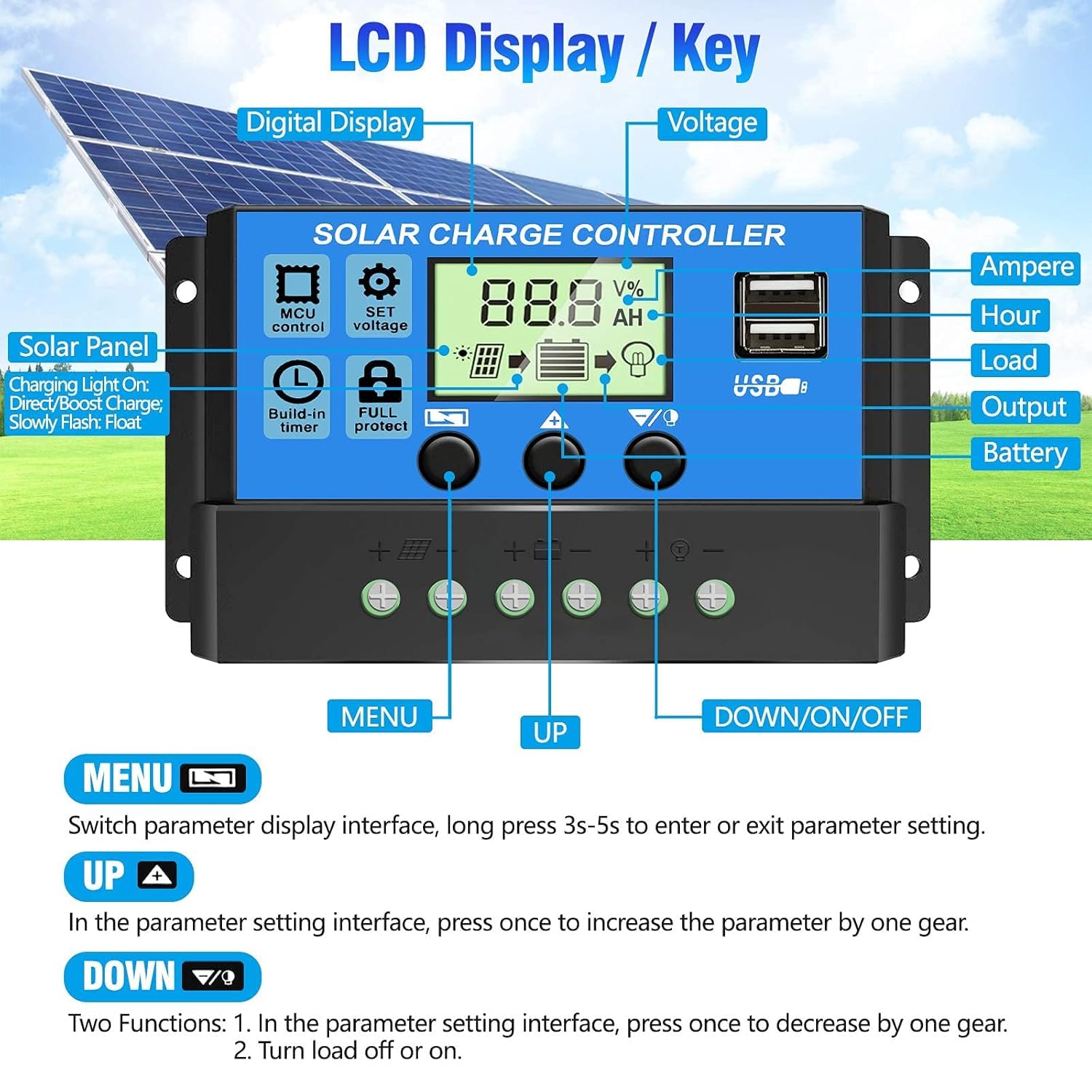

LCD Display clear to see the data : Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.

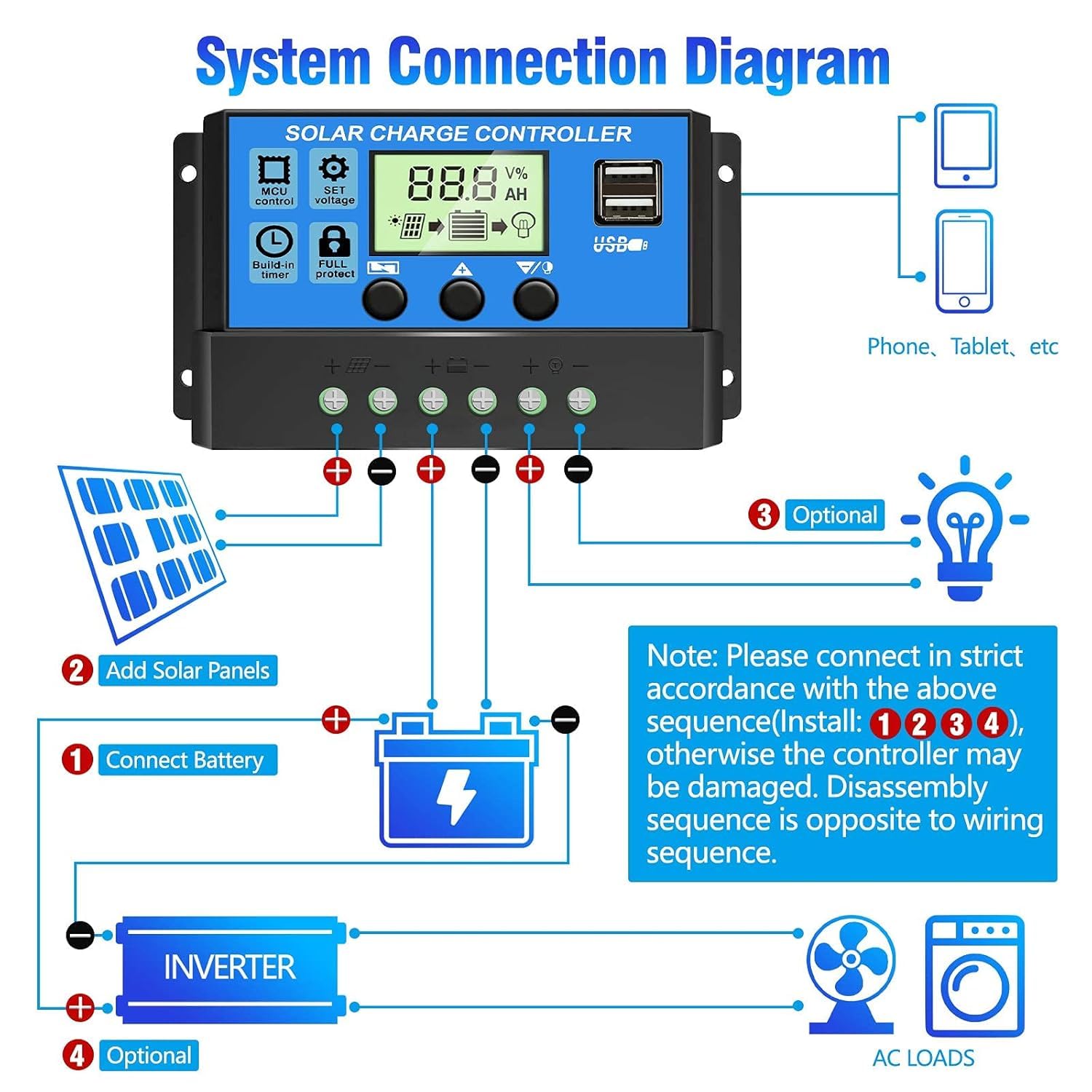

EASY TO MASTER OPERATION: 1. connect the battery with the controller according to the instrustion firstly, the controller will detect the battery voltage automatically (12V/24V); 2. Connect the positive and negative poles of the load to the controller properly; 3. Install the solar panel into the controller. If you want to disassemble the device, please note the disassembly sequence is contrary to the wiring order, you should detach the solar panel first. (Input: 12V-24V DC, Output: 5V-20V)
20A Solar Charge controller : solar charger controller is compatibility with 12V 24V system. Charging /discharge current is 20A, build-in high performance industrial controller, automatically manage the function of solar panel and battery in solar system.

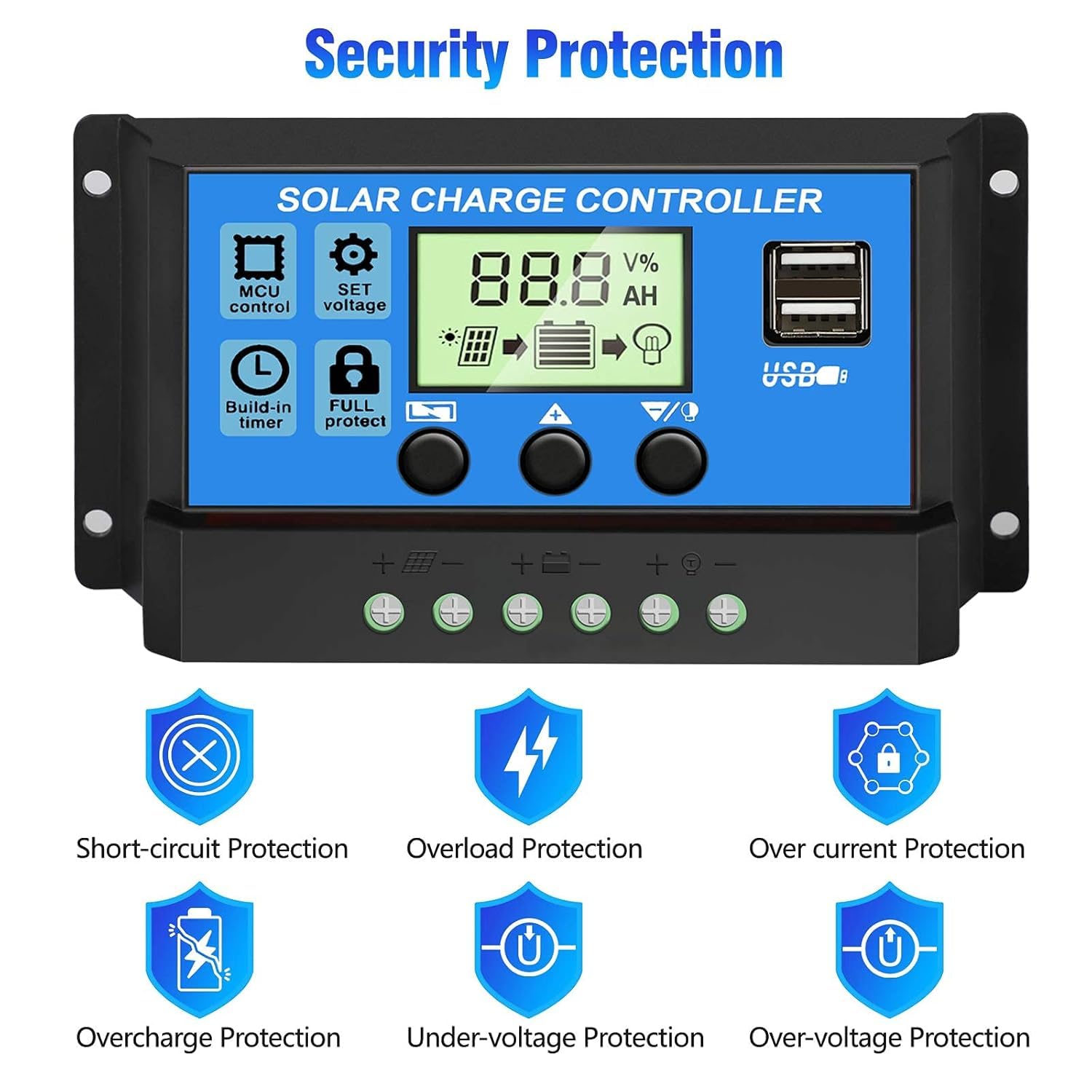

Safe to use:Multi-protection, equipped with over-current and short-circuit protection, open-circuit protection, reverse connection protection, dual MOS sinking, ensuring the safety and prolong the battery life.

Fast Delivery

Purchase Protection

Secure Payment

Easy Returns

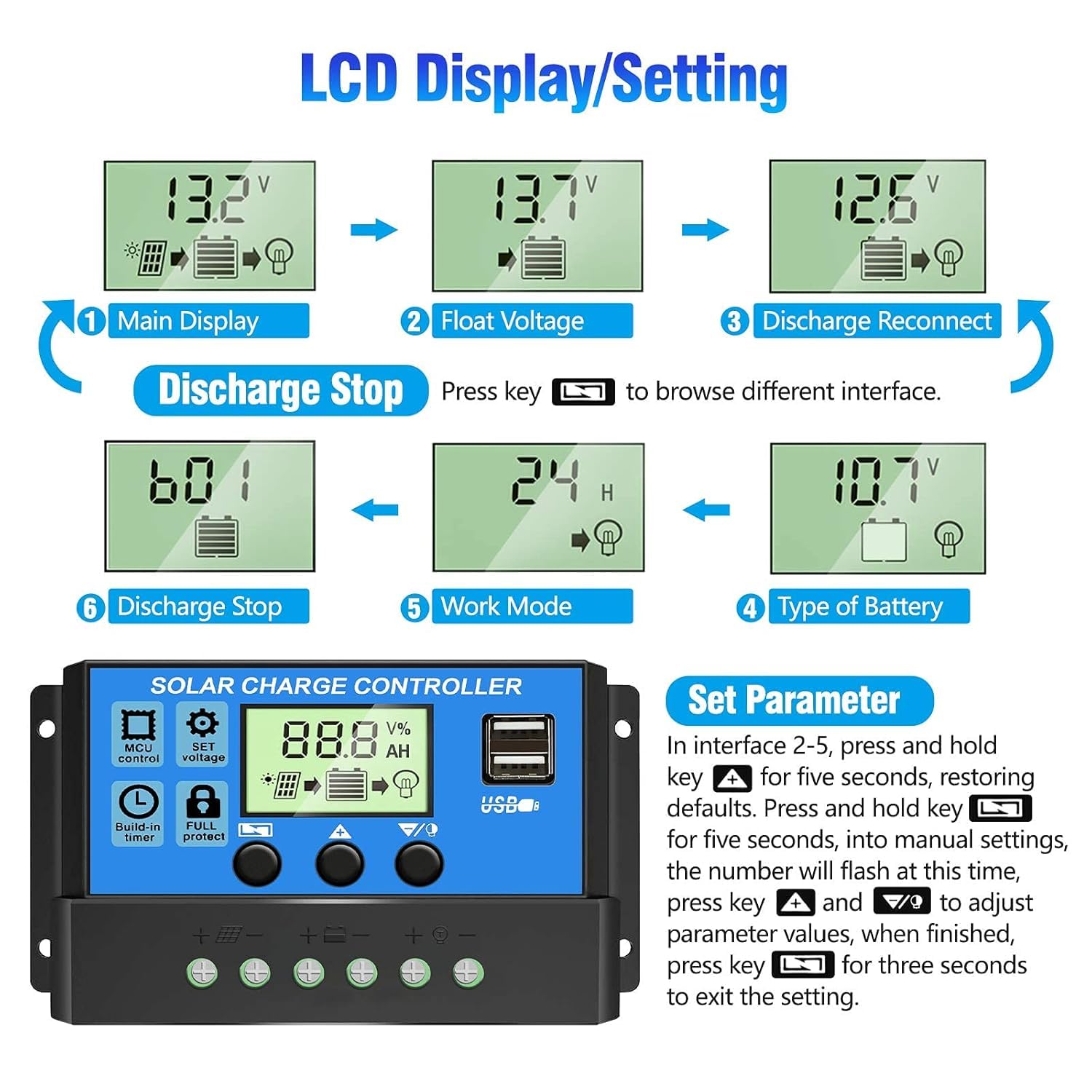

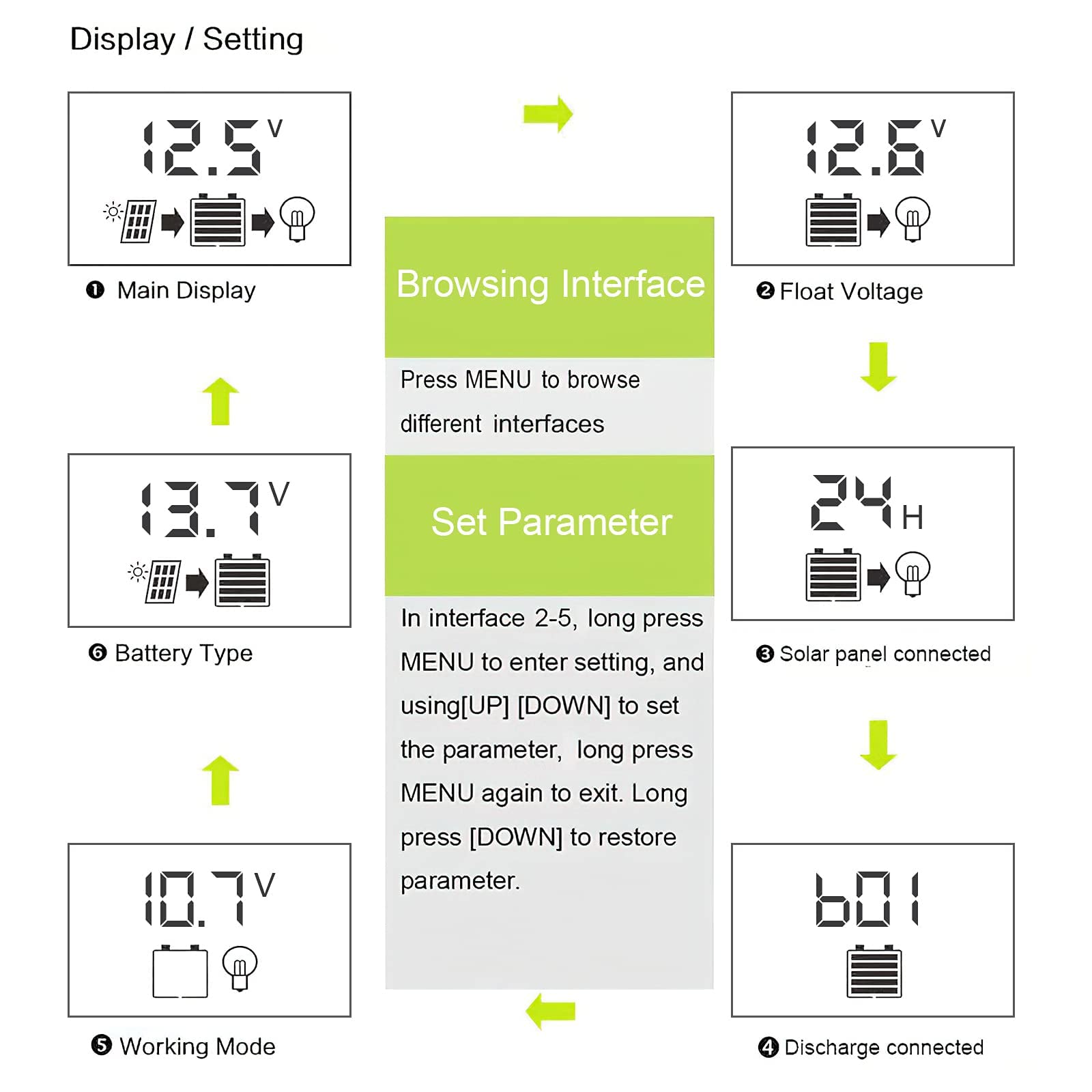

Protection way: - 1.Build-in industrial micro controller - 2.LCD screen display - 3.PWM charging mode - 4.Dual USB Port - 5.Build-in short-circuit protection - 6.Open-circuit protection - 7.Reverse protection - 8.Over-load protection - 9..Dual mosfet Reverse current protection - Controller Parameters - 1. Floating charge Voltage(HVD 13.3V-15V) - 2. Recovery after under Voltage(LVD 11V-13.5V) - 3.Under Voltage protection (RVD 9V-12.3V) - 4.Load Mode(24hours,1-23hours,0hour) - 5.Battery Option(GEL,LEAD-ACID,FLOODED) Battery voltage: 12V/24V auto Charge current: 20A Discharge current: 20A Max Solar input: <50V Equalization: B01 sealed 14.4V Float charge: 13.7V(defaul,adjustable) Discharge stop: 10.7V(defaul,adjustable) Discharge reconnect: 12.6V(defaul,adjustable) USB output: 5V/3A Self-consume: <10mA Operating temperature: -35~+60 degree C Solar Controller System Connection: - 1.Connect the battery to the charge regulator - "+"and "-". - 2.Connect the photovoltaic module to the regulator - "+"and "-" - 3. Connect the consumer to the charge regulator - "+"and "-" NOTE: If you want to disassemble the device, please note the disassembly sequence is contrary to the wiring order,you should detach the solar panel first. An improper disassembly sequence order can damage the controller! Package: - 1.1* 20A Solar Charge Contorller - 2.1* English User Manual
