1S 2S 3S 4S 5S 6S 7S 8S 1-8S Lithium Battery Capacity Indicator Module 4 Sections Green LED Display Tester Li-po Li-ion
Visit the REES52 StoreColor: Multi
4 (1 Reviews)
$7.99$9.99-20%
Availability: 23 item(s)
1
Silkrute sources this product on your behalf from trusted local suppliers globally after you place your order and handles international shipping, customs, and customer support to your destination.
About this item
- Working voltage: 3-34V, working current: 5mA, working temperature: -20-50℃
- Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity.
- Note: This model is not waterproof, the electronic components should be used in a dry environment.
- Wide application fields: lithium battery
- Four-level power display(Blue/Green optional)
Fast Delivery
Purchase Protection
Secure Payment
Easy Returns
1S 2S 3S 4S 5S 6S 7S 8S 1-8S Lithium Battery Capacity Indicator Module
1. Battery type electricity quantity display, Wide application fields: lithium battery
2. Working voltage: 3-34V, working current: 5mA, working temperature: -20-50℃

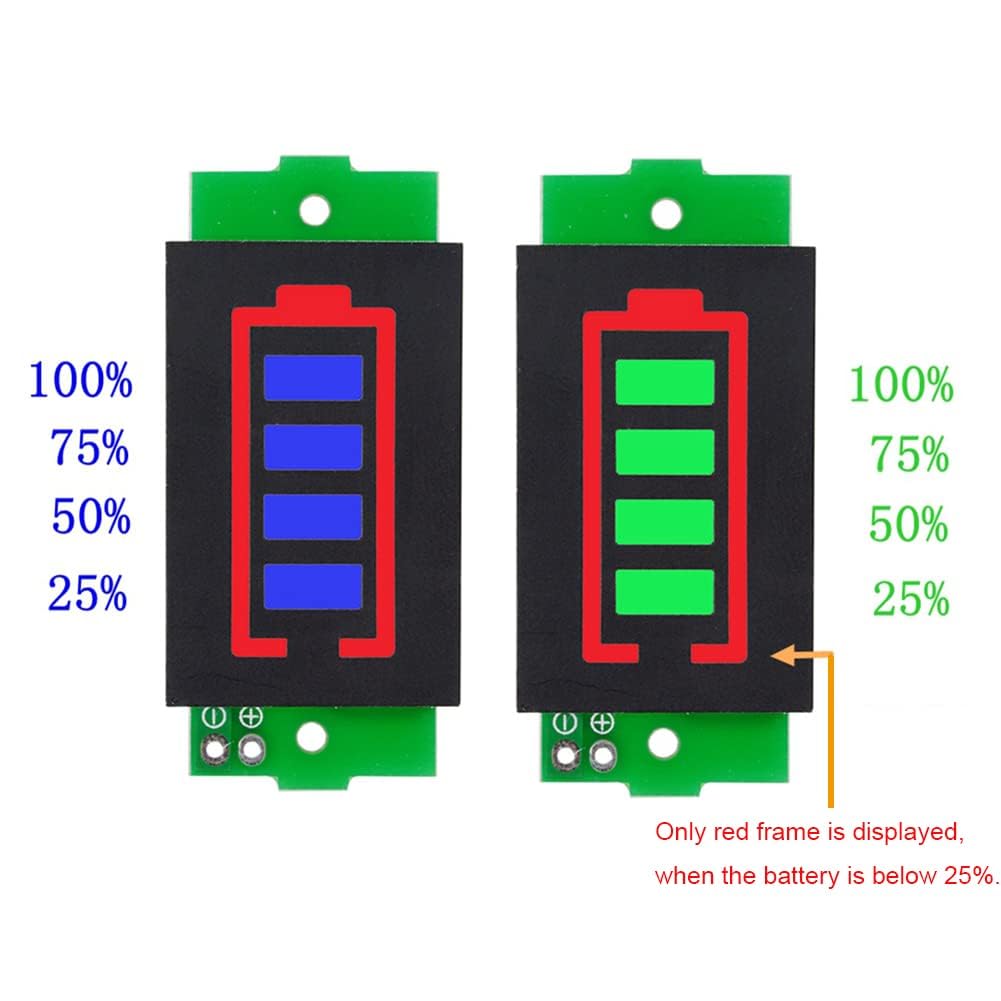

3. Digital Color: outline red, display block blue/green (when battery electricity quantity is full, it will be all on)
4. Note: This model is not waterproof, the electronic components should be used in a dry environment.

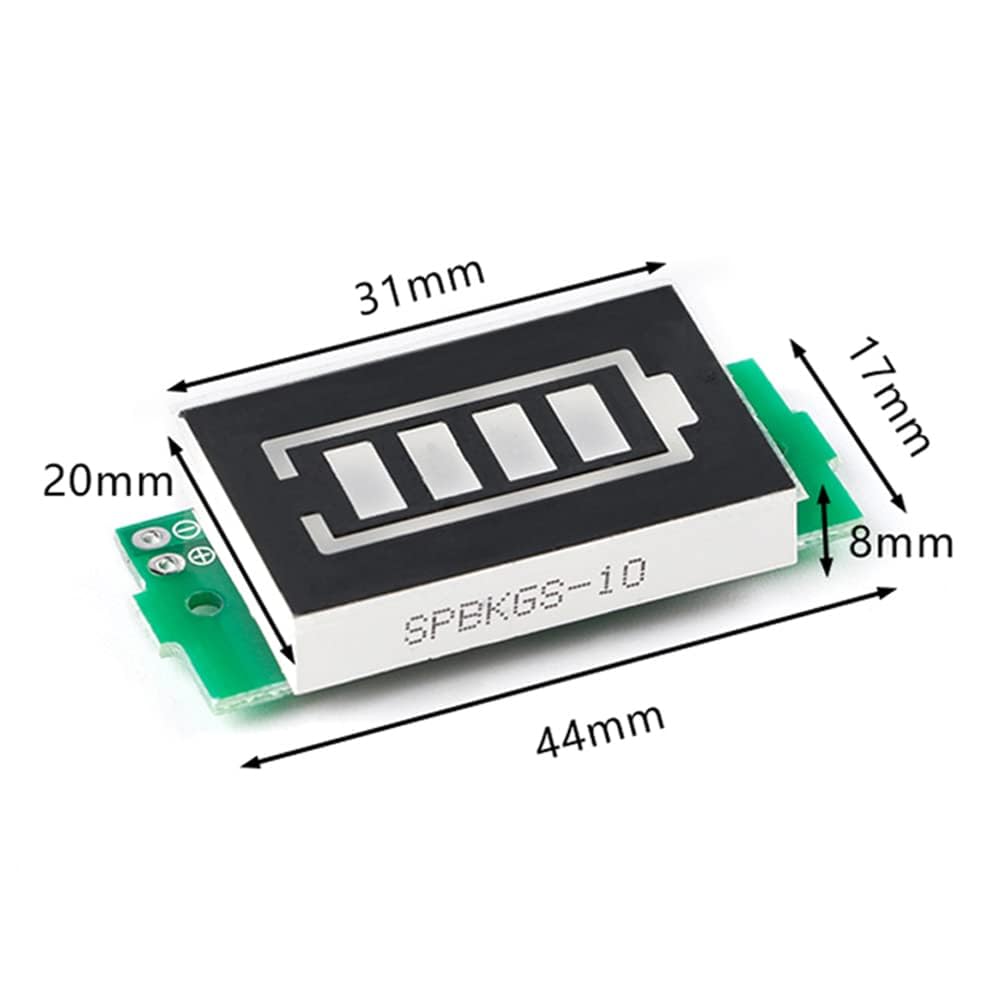

5. PCB dimension: 44*17mm, Display dimension: 31*20*8mm, Weight: 6g
How to use
Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube displays the real-time battery power.

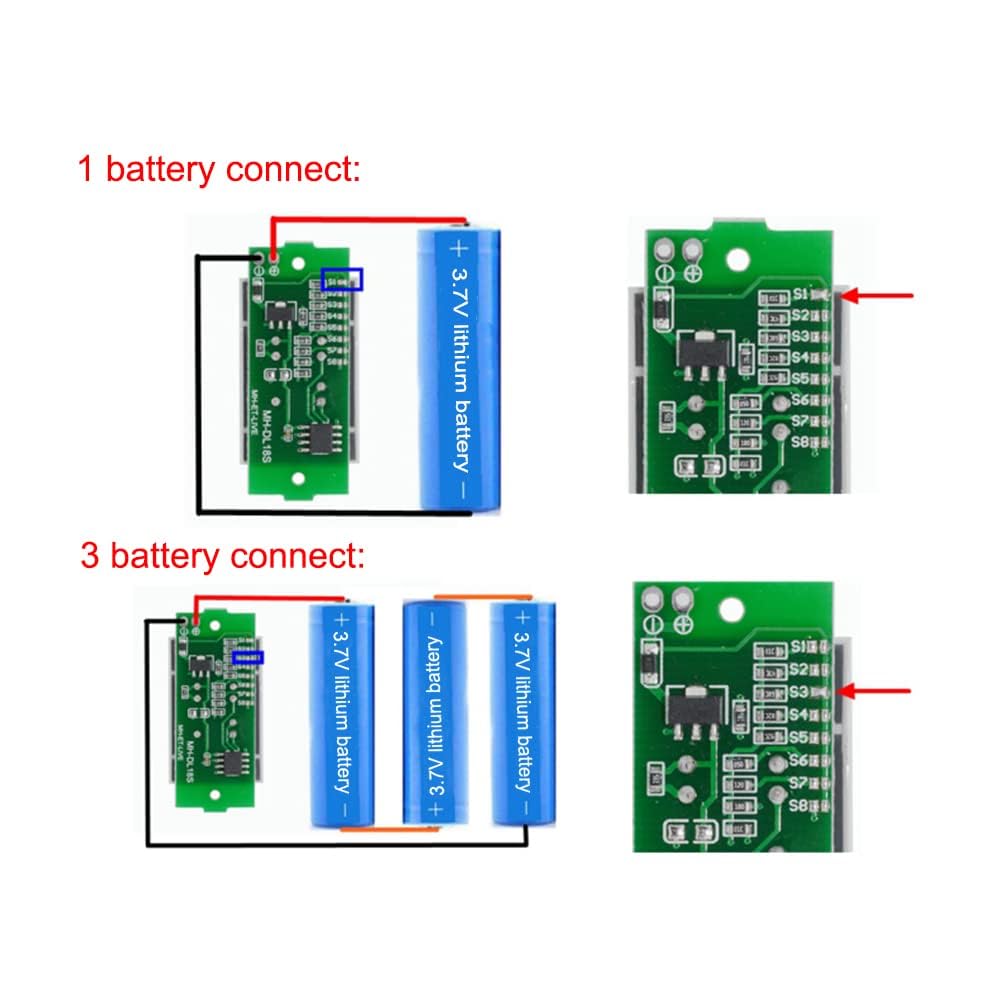

Note that the connection is a few series of lithium batteries, we need to connect the corresponding pads on the tin. For example, the measured 2S battery (i.e., two 3.7V lithium batteries in series connection), it is necessary to short-circuit the corresponding pads on the S2 of the board.
S1-S8 modules can only choose one type of wiring, not allowed to have 2 or more short connections at the same time.
Packing Included :
1 x 1S 2S 3S 4S 5S 6S 7S 8S 1-8S Lithium Battery Capacity Indicator Module
